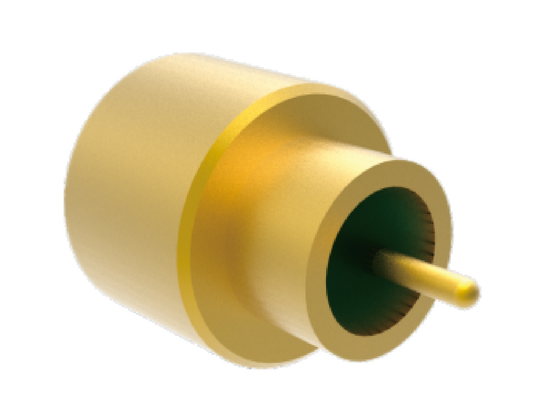

50Ω 40GHz Hermetically Sealed SMPM Plug Smooth Bore for PCB Solder with Pin OD 0.3mm Aerospace RF Connectors with Low Insertion Loss
|
उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
विस्तृत उत्पाद विवरण
| प्रोडक्ट का नाम: | एसएमपीएम पीसीबी प्लग | नमूना: | एसएमपीएम(एम)-जेएचडी2-एस |
|---|---|---|---|
| आवृति सीमा: | 0.3MHz-40GHz | मुक़ाबला: | 50Ω |
| डीडब्ल्यूवी: | 500V | इन्सुलेशन प्रतिरोध: | ≥5000MΩ |
| OEM: | ≤8mΩ; तांबा मिश्र धातु, सोना चढ़ाया हुआ | पैकेट: | ≤3.5mΩ; तांबा मिश्र धातु, सोना चढ़ाया हुआ |
| भुगतान की शर्तें: | काँच | वीएसडब्ल्यूआर: | ≤1.4 |
| निविष्ट वस्तु का नुकसान: | ≤0.4dB | रिसाव दर: | ≤1.01325×10-3Pa·cm3/s |
| तापमान: | -55℃ ~125℃ | सहनशीलता: | 500 चक्र |
| प्रमुखता देना: | 40GHz SMPM RF connector,hermetically sealed PCB solder connector,low insertion loss aerospace connector |
||
50Ω 40GHz Hermetically Sealed SMPM Plug for PCB Solder with Pin OD 0.3mm Aerospace RF Connectors with Low Insertion Loss
The SMPM series connector is a subminiature push-on RF coaxial connector. It features compact size (smaller than the SMP series), light weight and wide operating frequency bandwidth, with a maximum operating frequency up to 50 GHz. The male connector is available in two interface types: full detent and smooth bore. Its blind-mate interconnection allows axial and radial floating of the mating structure. It is suitable for RF and microwave signal transmission as well as modular dense mounting applications, and is widely used in vehicle-borne, ship-borne and satellite-borne fields.
SMPM Design Features
- Compact design
- Frequency band operation up to 40GHz
- Rugged construction for reliability
- Available in multiple configurations: straight, right angle, bulkhead, PCB and flange mount options
- Low VSWR & Insertion loss
Interface of SMPM RF Coaxial Connectors
50Ω 40GHz Hermetically Sealed SMPM Plug Smooth Bore for PCB Solder with Pin OD 0.3mm Aerospace RF Connectors with Low Insertion Loss
Model No.: SMPM(M)-JHD2-S
Similar Hermetically Sealed SMPM Smooth Bore Model No.: SMPM(M)-JHD18-S
Note: Please contact sales freely for detailed datasheet.
Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronics specializes in systematic interconnection solutions for demanding industries including:
- Aerospace and aviation systems
- Navigation and radar equipment
- Communication systems
- Measurement instruments
- Electronics applications
Packaging & Shipping
Each SMPM smooth bore connector aerospace RF Connectors is carefully packaged to ensure protection during transportation:
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
