50Ω 18GHz SMP Female SMP Jack 2 Hole Flange Aerospace RF Connectors Mating for .086 Cable
|
उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
विस्तृत उत्पाद विवरण
| प्रोडक्ट का नाम: | एसएमपी केबल कनेक्टर | नमूना: | एसएमपी-KFB2-87 |
|---|---|---|---|
| आवृति सीमा: | 0.3MHz-18GHz | मुक़ाबला: | 50Ω |
| डीडब्ल्यूवी: | 500V | इन्सुलेशन प्रतिरोध: | ≥5000MΩ |
| OEM: | ≤6mΩ; तांबा मिश्र धातु, सोना चढ़ाया हुआ | पैकेट: | ≤3mΩ; तांबा मिश्र धातु, सोना चढ़ाया हुआ |
| भुगतान की शर्तें: | पीट | वीएसडब्ल्यूआर: | ≤1.3 |
| निविष्ट वस्तु का नुकसान: | ≤0.25 डीबी | तापमान: | -55℃ ~125℃ |
| सहनशीलता: | 500 चक्र | ||
| प्रमुखता देना: | 50Ω 18GHz SMP female RF connector,SMP jack 2 hole flange connector,Aerospace RF connector for .086 cable |
||
50Ω 18GHz SMP Female SMP Jack 2 Hole Flange Aerospace RF Connectors Mating for .086 Cable
The SMP series is a miniature push-on RF coaxial connector. It features compact size, light weight and wide operating frequency bandwidth, with a maximum operating frequency up to 40 GHz. The SMP plug features three interface types: full detent, limited detent and smooth bore. It supports blind-mate interconnection and enables both axial and radial floating of the connection structure. As one of the most widely used RF coaxial connectors, it is suitable for RF and microwave signal transmission as well as modular dense installation scenarios. It is extensively applied in vehicle-borne, ship-borne and satellite-borne application.
SMP Design Features
- Compact design
- Frequency band operation up to 40GHz
- Rugged construction for reliability
- Available in multiple configurations: straight, right angle, bulkhead, PCB and flange mount options
- Low VSWR & Insertion loss
Interface of SMP RF Coaxial Connectors

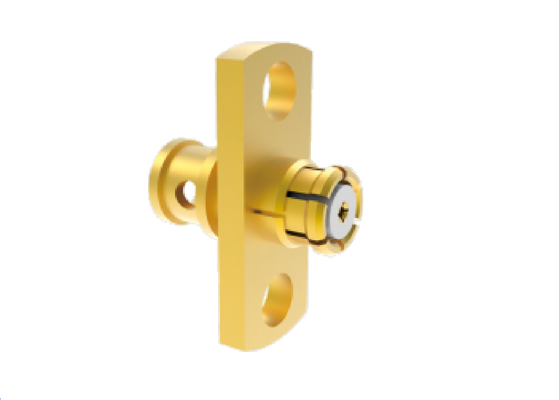

SMP Female Flange Mount Connector Mating for .086 Cable | Model No.: SMP-KFB2-87 ( Cable OD2.2 mm )
Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronics specializes in systematic interconnection solutions for demanding industries including:
- Aerospace and aviation systems
- Navigation and radar equipment
- Communication systems
- Measurement instruments
- Electronics applications
Packaging & Shipping
Each SMP .086 cable connectors aerospace RF Connectors is carefully packaged to ensure protection during transportation:
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
