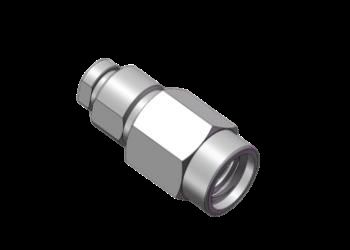

50Ω Reverse Polarity SSMA Female Mini SMA Jack Straight Right Angle RF Coaxial CXN3506 Flexible Cable Connector 18GHz
|
उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
विस्तृत उत्पाद विवरण
| प्रोडक्ट का नाम: | रिवर्स पोलरिटी एसएसएमए महिला केबल कनेक्टर | नमूना: | RPSSMA-K506G |
|---|---|---|---|
| आवृति सीमा: | 0.3MHz-18GHz | मुक़ाबला: | 50 |
| डीडब्ल्यूवी: | 750 वी | इन्सुलेशन प्रतिरोध: | ≥5000MΩ |
| केंद्र कंडक्टर: | कॉपर मिश्र धातु, सोना मढ़वाया | बाहरी कंडक्टर: | स्टेनलेस स्टील, निष्क्रिय |
| संभोग केबल: | CXN3506 केबल | रोधक: | पीटीएफई |
| नमूने: | स्टॉक में | ||
| प्रमुखता देना: | 50Ω SSMA female RF connector,reverse polarity SMA jack connector,18GHz flexible coaxial cable connector |
||
50Ω Reverse Polarity SSMA Female Mini SMA Jack Straight Right Angle RF Coaxial CXN3506 Flexible Cable Connector 18GHz
High-Frequency Performance up to 18GHz
The SSMA Series RF coaxial connector is a miniaturized version of the SMA connector, designed to be 30% smaller while maintaining excellent performance characteristics. Featuring a threaded interface (10-36UNF-2) and 50Ω characteristic impedance, these connectors support frequencies up to 30GHz.
Key Features:
- Compact design - 30% smaller than standard SMA connectors
- Wide frequency band operation up to 30GHz
- High reliability for demanding applications
- Available in multiple configurations: straight, right angle, bulkhead, and flange mount options
- Stainless steel screw sleeve/barrel for durability
Interface of SSMA RF Coaxial Connectors
Reverse Polarity Straight SSMA Female RF Coaxial CXN3506 Flexible Cable Connector Dimenstion:
Model No.: RPSSMA-K506G
Reverse Polarity RA SSMA Female RF Coaxial CXN3506 Flexible Cable Connector Dimenstion:
Model No.: RPSSMA-K506G
Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronic specializes in systematic interconnection solutions for demanding industries including:
- Aerospace and aviation systems
- Navigation and radar equipment
- Communication systems
- Measurement instruments
- Electronics applications
Packaging and Shipping
Each SSMA RF Coaxial Connector is carefully packaged to ensure protection during transportation:
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
For additional similar product models information, please check our catalog or contact our sales team at:
sales3@xa-elite.com.cn
sales3@xa-elite.com.cn
