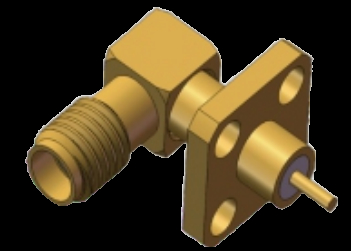

RA SSMA Jack/Female RF Coax Microstrip Connector 4 Hole Flange Mount Up to 18GHz
|
|
उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
विस्तृत उत्पाद विवरण
| प्रोडक्ट का नाम: | आरए एसएसएमए महिला माइक्रोस्ट्रिप कनेक्टर | नमूना: | SSMA-KWFD1 |
|---|---|---|---|
| आवृति सीमा: | 0.3MHz-18GHz | मुक़ाबला: | 50Ω |
| रेटेड वोल्टेज: | 250 वी | डीडब्ल्यूवी: | 750 वी |
| इन्सुलेशन प्रतिरोध: | ≥5000MΩ | केंद्र कंडक्टर: | कॉपर मिश्र धातु, सोना मढ़वाया |
| बाहरी कंडक्टर: | कॉपर मिश्र धातु, सोना मढ़वाया | माउंट विधि: | 4 होल निकला हुआ किनारा माउंट |
| पेंच: | 10-36UNS-2 | रोधक: | पीटीएफई |
| नमूने: | स्टॉक में, उपलब्ध | ||
| प्रमुखता देना: | 18GHz RF Connector,Microstrip RF Connector,4 Hole Flange Mount RF Connector |
||
4 Hole Flange Mount Right Angle SSMA / Mini SMA RF Coax Microstrip Connector Up to 18GHz
Product Specifications
| Items | Value |
|---|---|
| Product Name | RA SSMA Female Microstrip Connector |
| Model | SSMA-KWFD1 |
| Frequency Range | 0.3MHz-18GHz |
| Impedance | 50Ω |
| Rated Voltage | 250v |
| DWV | 750V |
| Insulation Resistance | ≥5000MΩ |
| Center Conductor | Copper Alloy, Gold Plated |
| Outer Conductor | Copper Alloy, Gold Plated |
| Mount Method | 4 Hole Flange Mount |
| Insulators | PTFE |
| Samples | In Stock, Available |
Product Overview
The Right Angle SSMA series RF coaxial connectors are compact versions of the SMA interface standard, approximately 70% the size of traditional SMA connectors. These connectors feature:
- Compact size with wide frequency bandwidth
- Superior mechanical and electrical performance
- High reliability in demanding applications
- Threaded connection (10-36UNF-2)
- Characteristic impedance of 50Ω
- Frequency operation up to 30GHz
Interface Dimensions
SSMA Right Angle 4 Hole Flange Mount Microstrip Connectors Dimensions
Outline dimensions for the SSMA-KWFD1 model (Unit: mm).
Other 4 Hole flange Mount Right Angle SSMA Microstrip Connectors Models:
Applications
Ideal for high-precision microwave signal transmission in:
- Microwave communication systems
- Measurement equipment
- Aerospace applications
- Radar systems
- Electronics fields
Packaging & Shipping
Packaging: Each 4 hole flange mount right angle SSMA connector is carefully packaged in protective cartons to ensure safe transit. Shipping: We use reliable courier services with tracking numbers provided for all shipments.
Shipping: We use reliable courier services with tracking numbers provided for all shipments.Note: For other similar flange mount right angle connector models, please check our catalog. While some models are in stock, all can be produced quickly to meet customer requirements.
